Three-Level Stack Parking System in Mumbai
Maximize Parking Capacity with Advanced Three-Level Stacking

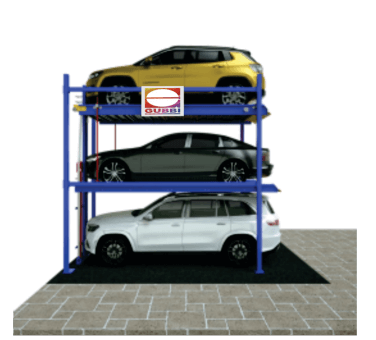

Three-Level Simple Stacker – Smart & Space-Efficient Parking
Efficient three-level stacker designed for residential, commercial, and industrial spaces, offering seamless parking with minimal space usage.
DEPENDENT SYSYTEM : According to the drive mode of lifting, it can be categorized into two types: Electro-Mechanical and Hydraulic type
Our Three-Level Simple Stacker (G+2) is the best parking solution for residential complexes, commercial buildings, and industrial facilities. Its compact design allows for seamless parking management and is designed to maximize capacity while maintaining safety and convenience.
- Residential Parking – Gated communities & apartments
- Commercial Buildings – Office complexes & malls
- Hotels & Hospitality – Efficient valet parking solutions
- Industrial & Factory Parking – Space-efficient vehicle storage
- Public & Municipal Parking – Optimized urban parking lots
Call Now
Get a Free Quote Today!
Fill in your details below, and our team will get in touch.
KEY FEATURES
- Motors and Controls are with IP55 Protection.
- - Powder Coated Structure with GI Deck sheet.
- EV Charging facility can be provided on demand.
- Limit switch for Upper Car Movement.
- Power pack with Telescopic Cylinder to operate Hydraulic Stacker.
- Safety Features: Mechanical Locking, Non Return valve for cylinder and pressure release valve in powerpack Vehicle presence sensor (optional).
- Very low maintenance and easy for servicing.
- Occupying smaller area, the capacity triples in equivalent area.
- Simple structure, lower cost.
- Flexible combination, convenient installation & dismantling.
- Button operated, simple and convenient.
- Compact Geared box Motor mounted on the pole of stacker for Mechanical Stacker
- Front Wheel stopper arrangement on platform for proper positioning of car.
HYDRAULIC 2L OG STACK PARKING (G+1)-DEPENDENT

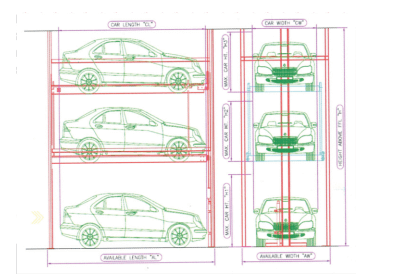

Stack Parking Floor Height and Car Type Chart
| TOTAL HEIGHT 'H' | FLOOR HEIGHT | CAR TYPE | ||
|---|---|---|---|---|
| GF 'H1' | 1F 'H2' | 2F 'H3' | ||
| 5550 | 1750 | 1650 | 1650 | TALLBOY + HATCHBACK + HATCHBACK |
| 5800 | 2000 | 1650 | 1650 | SUV + HATCHBACK + HATCHBACK |
| 6150 | 2000 | 2000 | 1650 | SUV + SUV + HATCHBACK |
| 5750 | 1750 | 1750 | 1750 | TALLBOY + TALLBOY + TALLBOY |
| 6000 | 2000 | 1750 | 1750 | SUV + TALLBOY + TALLBOY |
| 6250 | 2000 | 2000 | 1750 | SUV + SUV + TALLBOY |
| 6500 | 2000 | 2000 | 2000 | SUV + SUV + SUV |
Width Table
| AVAIL. WIDTH 'AW' | PALLET WIDTH 'PW' | CAR WIDTH 'CW' |
|---|---|---|
| 2400 | 2000 | 1800 |
| 2500 | 2100 | 1900 |
| 2600 | 2200 | 2000 |
| 2700 | 2300 | 2100 |
